NP-FDA - Caustic Washdown

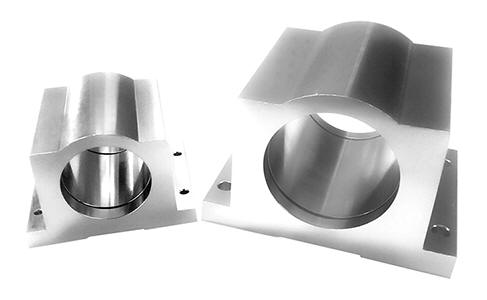

Pillow Blocks & Flange Blocks



Compliant Pillow and Flange blocks can be used with 440C
Linear Ball Bearings, Minuteman PTFE, Ceramic Coated and LM76 FDA Stainless PTFE Linear Bearings.


Electroless Nickel coating is extremely uniform and will not generate excessive buildup on corners or projections. Typical plating thickness for FOODSTREAM pillow blocks is .0002 - .0003 thickness. LM76s Electroless Nickel satisfies the End of Life Vehicle Directive” (ELV), the European Unions Reduction of Hazardous Substances (RoHS), as well as the Waste from Electrical and Electronic Equipment (WEEE) directives. It is strictly a functional coating offering high corrosion resistance and improved wear resistance. Unless otherwise requested, all plating is furnished in accordance with MIL-C-26074 its superior wear resistance is clearly demonstrated when, in the as-plated condition, it has a Taber Wear Factor of 2.13 compared to that of hard chrome. Electroless nickel deposits guarantee 100% coverage and are so uniform that the surface finish is normally duplicated and after plate machining or polishing is often eliminated. Threads and other complex shapes also maintain their original geometry after plating.

                                                                                                  M
il-C-26074, AMS-2404 • All Coatings are FDA Compliant and RoHS Compliant



LM76 NP FDA Pillow Blocks are a
 standard for the following Industries:


Food Process
Packaging Machinery
Bio-Pharma Systems
Medical Equipment

They can be paired with any of our
roundway FDA linear bearings

dmr-lm76-open-and-closed-bearings-minute-man-green dmr-lm76-fda-lite dmr-lm76-FDA-Fluidline
Stainless FDA + NP Ceramic Coated FDA + NP Fluidline FDA  + NP Stainless Ball + NP Ceramic Coated FDA + NP
