PSI PV Coefficient
of Friction
WashDown FDA/USDA
Compliance
Shaft MAX Speed
1000 10,000 .15 - .2 excellent Yes 300 Series Stainless
Class Rb25
400 SFM

NEW! FDA, Self Lube ETX
Scraper Seals
see more...

Stainless Steel Pillow Blocks
are available in standard inch
and metric configurations

CLOSED Part Number

L 610 FDA

LM76FDA/USDA Compliant Linear Motion Bearings feature a 304Stainless Steel Shell which is lined
with A FDA/USDA Compliant, Self Lubricating, Liner.
Washdown - Food Service - Inclusion Resistant - Chlorine Dilution Friendly -Rugged


LM76 Linear Motion Bearings are direct drop-in replacements for linear ball bearings

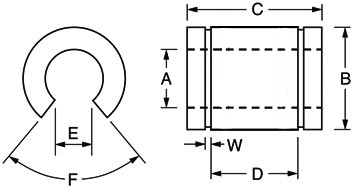

Part Number
CLOSED

Bearing
Size

A

Working
Bore

ID Bore
Tolerance

Outside
Diameter

B

OD
Tolerance

Bearing
Length

C

Length
Tolerance

Distance
Between Retaining
Ring Grooves
D

Bearing
Weight
LBS.

L610-7FDA 3/8"

0.3755

0.0010

0.6250

0.0010

0.875

0.015

0.562

0.016

L814FDA 1/2"

0.5005

0.0010

0.8750

0.0010

1.250

0.015

0.875

0.041

L1018FDA 5/8"

0.6255

0.0010

1.1250

0.0010

1.500

0.015

1.000

0.091

L1220FDA 3/4"

0.7508

0.0010

1.2500

0.0010

1.625

0.015

1.062

0.109

L1625FDA 1"

1.0008

0.0010

1.5625

0.0010

2.250

0.015

1.625

0.228

L2032FDA 1-1/4"

1.2508

0.0010

2.0000

0.0010

2.625

0.020

1.875

0.459

L2438FDA 1.5"

1.5008

0.0015

2.3750

0.0015

3.000

0.020

2.250

0.750

SolidWorks Files Upon Request
Please provide your contact information and the bearing(s) models you require.

Email
Company Name
Telephone Number
Part Number(s)

Additional Application Comments:



OPEN Part Number

LX 610 FDA

Part Number
OPEN

Bearing
Size

A

Working
Bore

ID Bore
Tolerance

Outside
Diameter

B

OD
Tolerance

Bearing
Length

C

Length
Tolerance

Slot
Width
+.020
-.000

Distance
Between Retaining
Ring Grooves

D

Bearing
Weight
LBS.

LX610FDA 3/8"

0.3755

0.0010

0.6250

0.0010

0.875

0.015

0.156

0.562

0.013

LX814FDA 1/2"

0.5005

0.0010

0.8750

0.0010

1.250

0.015

0.312

0.875

0.034

LX1018FDA 5/8"

0.6255

0.0010

1.1250

0.0010

1.500

0.015

0.375

1.000

0.072

LX1220FDA 3/4"

0.7508

0.0010

1.2500

0.0010

1.625

0.015

0.438

1.062

0.091

LX1625FDA 1"

1.0008

0.0010

1.5625

0.0010

2.250

0.015

0.563

1.625

0.184

LX2032FDA 1-1/4"

1.2508

0.0010

2.0000

0.0010

2.625

0.020

0.625

1.875

0.381

LX2438FDA 1.5"

1.5008

0.0015

2.3750

0.0015

3.000

0.020

0.750

2.250

0.630
