LM76 FDA Linear Bearings

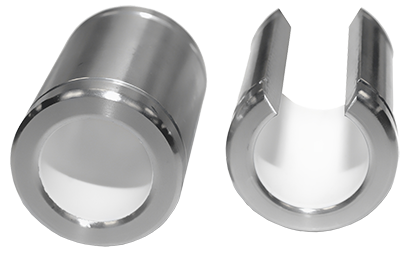

FDA/USDA Compliant Linear Motion Bearings feature a 304 Stainless Steel Shell which is lined with A FDA/USDA Compliant, Self Lubricating, PTFE Liner. Washdown - Food Service - Inclusion Resistant - Chlorine Dilution Friendly - Rugged Linear Motion Bearings are direct drop-in replacements for linear ball bearings. ETX Scraper Seals for FDA/Washdown Applications can be supplied.





  • LM76 Linear Motion Bearings are direct drop-in replacements for linear ball bearings.
  • Self-Lubricating FDA Linear Bearings are self-lubricating and because our PTFE Composite have no abrasive fillers, it can run on RC60, soft 300 series stainless and aluminum.
  • L P/N are Closed Bearings
  • LX P/N are Open Bearings
  • Part Number Example L1625-FDA
  • Part Number with ETX Scraper Seals Example L1625-FDA-2ETX



ETX Scraper Seal Technology



LM76 ETX Scraper Seals are machined from a FDA Compliant, Self-Lubricating material that has exceptional wear characterists. By design and geometry, they are spring loaded against the shaft. ETX Scraper Seals feature a snap-in design that intstalls on the shaft with an interference fit. They do create additional friction but they also inhibit inclusion of debris and media between the bearing and shaft interface.





PSI PV Coefficient of Friction FDA Compliance Shaft Max Speed Washdown
1000 10,000 .1-1.5 300 Series Stainless 400 SFM





To Download Step Files Right Click and Choose Save Link As...Firefox or Google Chrome Download Link



Closed Bearings  (L)
Part Number Bearing ID
A
Bearing OD
B
Bearing Length
C
Distance Between
Retaining Ring Grooves
D
Snap Ring
Width
W
Max Shaft
Diameter
Housing
Bore
Housing Bore
Tolerance
Bearing
Weight
Max Static
Load
lbs.
Download
Step Files
 L610-FDA 0.3755 in 0.6250 in 0.875 in 0.562 in   0.3745 in 0.6250 in 0.0005 in 0.015 in 1643 in STEP
 L814-FDA 0.5005 in 0.8750 in 1.250 in 0.875 in   0.4995 in 0.8750 in 0.0005 in 0.046 in 3128 in STEP
 L1018-FDA 0.6255 in 1.1250 in 1.500 in 1.000 in 0.6245 in 1.1250 in 0.0005 in 0.096 in 4691 in STEP
 L1220-FDA 0.7508 in 1.2500 in 1.625 in 1.062 in   0.7495 in 1.2500 in 0.0005 in 0.125 in 6100 in STEP
 L1625-FDA 1.0008 in 1.5625 in 2.250 in 1.625 in   0.9995 in 1.5625 in 0.0005 in 0.247 in 11259 in STEP
 L2032-FDA 1.2508 in 2.0000 in 2.625 in 1.875 in   1.2495 in 2.0000 in 0.0010 in 0.500 in 16417 in STEP
 L2438-FDA 1.5008 in 2.3750 in 3.000 in 2.250 in   1.4994 in 2.3750 in 0.0010 in 0.780 in 22512 in STEP





To Download Step Files Right Click and Choose Save Link As...Firefox or Google Chrome Download Link



Open Bearings  (LX)
Part Number Bearing ID
A
Bearing OD
B
Bearing Length
C
Distance Between
Retaining Ring Grooves
D
Slot Width
E
Max Shaft
Diameter
Housing
Bore
Housing Bore
Tolerance
Bearing
Weight
Max Static
Load
lbs
Download
Step Files
 LX610-FDA 0.3755 in 0.6250 in 0.875 in 0.562 in 0.156 in 0.3745 in 0.6250 in 0.0005 in 0.015 in 1643 in STEP
 LX814-FDA 0.5005 in 0.8750 in 1.250 in 0.875 in 0.312 in 0.4995 in 0.8750 in 0.0005 in 0.046 in 3128 in STEP
 LX1018-FDA 0.6255 in 1.1250 in 1.500 in 1.000 in 0.375 in 0.6245 in 1.1250 in 0.0005 in 0.096 in 4691 in STEP
 LX1220-FDA 0.7508 in 1.2500 in 1.625 in 1.062 in 0.438 in 0.7495 in 1.2500 in 0.0005 in 0.125 in 6100 in STEP
 LX1625-FDA 1.0008 in 1.5625 in 2.250 in 1.625 in 0.563 in 0.9995 in 1.5625 in 0.0005 in 0.247 in 11259 in STEP
 LX2032-FDA 1.2508 in 2.0000 in 2.625 in 1.875 in 0.625 in 1.2495 in 2.0000 in 0.0010 in 0.500 in 16417 in STEP
 LX2438-FDA 1.5008 in 2.3750 in 3.000 in 2.250 in 0.750 in 1.4994 in 2.3750 in 0.0010 in 0.780 in 22512 in STEP
